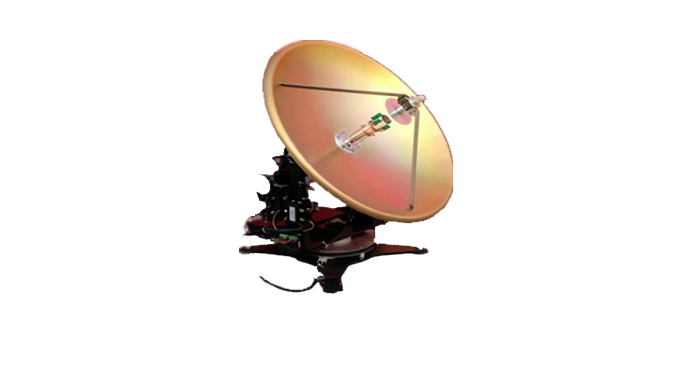

Shipborne mobile communications antenna system

  • Product Features
    ● Automatic completion of the Ku-band communications satellite positioning, search, track and re-interception;
    ● Suitable for all types of broadband satellite communications network, capable of broadband, voice, data, images and other multimedia signals in real-time two-way transmission;
    ● Suitable for use in all waters of the world, bearing support system 360 ° continuous rotation, tilt cover 0 ° ~ 100 °, ± 90 ° polarization angle can be adjusted automatically;
    ● using the world's advanced satellite tracking and stabilization technology, per second tracking speed exceeds 60 °, to ensure the smooth flow of normal communication in a variety of complex and harsh sea conditions;
    ● follower mechanical structure with a high-rigidity design, with excellent shock resistance, reliability, and adaptability to the marine environment.



Technical Parameters


model

SC60

SC90

SC-120

SC-180

Working frequency（GHz)

Tx:13.75～14.5;

Rx::10.95～12.75

Tx:13.75～14.50;

 Rx:10.95～12.75

Tx:13.75～14.50;

Rx:10.95～12.75

Tx:5.85～6.425;

Rx:3.625～4.2

Diameter radome（mm）

738

1180

1600

2260

Radome height（mm）

816

1220

1650

2250

Minimum EIRP(dBW)

47

44

System Weight（kg）

41

70

≤123

≤129

Initialization time（s）

≤120

Then intercepted Time（s）

≤5

Tracking a stable manner

Pan / tilt / polarization triaxial

Pan / tilt / polarization triaxial

Pan / tilt / polarization axis

Pan / tilt / or polarization axis azimuth /

Tilt / polarization triaxial

Tracking Accuracy

Better than 1 / 10-3dB reception beam width, RMS

Polarization angle adjustment range (°)

±90

Antenna rotationrange

position

360 Unlimited

360 Unlimited

360, continuous

360, continuous

Pitch

0～100

Working Temperature (℃)

Outdoor unit

-20～70

-20～70

-25～70

-25～70

The indoor unit

-15～50

-15～50

-20～60

-20～60

humidity

Below 40 ℃

95%±3%

Above 40 ℃

70％±3％

Storage Temperature (℃)

-30～85

Power supply (V)

24VDC

AC 220±10%，50Hz±5%

System Power (W)

185

145

420

450

Microwave radiation

Meet GJB 663 Section 9.1

noise

Section 1.8.8 meet GJB367.1

Environmental conditions

GJB367.2 meet the requirements of

Electromagnetic Compatibility

Meet GJB367.1 1.4

Protection class

IP56
